TeXtreme® Woven Spread Tow Carbon Fabrics

TeXtreme® Spread Tow Woven Carbon Fabrics are developed for advanced composite applications where directional stiffness, low weight, and high surface quality are critical. Built from ultra-thin Spread Tow unidirectional tapes, the fabrics are woven into a flat, crimp-free structure that minimizes fiber distortion and maximizes load transfer efficiency.

Available in both 0/90 and +/- 45 fiber orientations, these fabrics enable precise reinforcement along defined load paths, supporting high-performance laminate designs with reduced ply count and improved structural efficiency. The 0/90 variant offers excellent in-plane stiffness and impact resistance, while the +/- 45 configuration provides enhanced torsional rigidity, ideal for components subject to twisting forces.

The uniform fiber architecture facilitates smooth resin flow and results in a clean, aerodynamic surface finish. TeXtreme® woven fabrics offer excellent handling characteristics and are compatible with both prepreg and dry processing, enabling efficient production of lightweight, high-strength composite parts.

Explore Configurations

Compare orientations and view product specifications to find the ideal fit for your application.


Woven with fibers aligned in the 0° and 90° directions, this configuration delivers optimal stiffness and strength along both primary axes, making it ideal for load-bearing structural applications.
Weights from

42 gsm

Carbon Fiber Type

HM, IM & HS

Fabric Width

Up to 2000 mm







Weave Pattern

PW

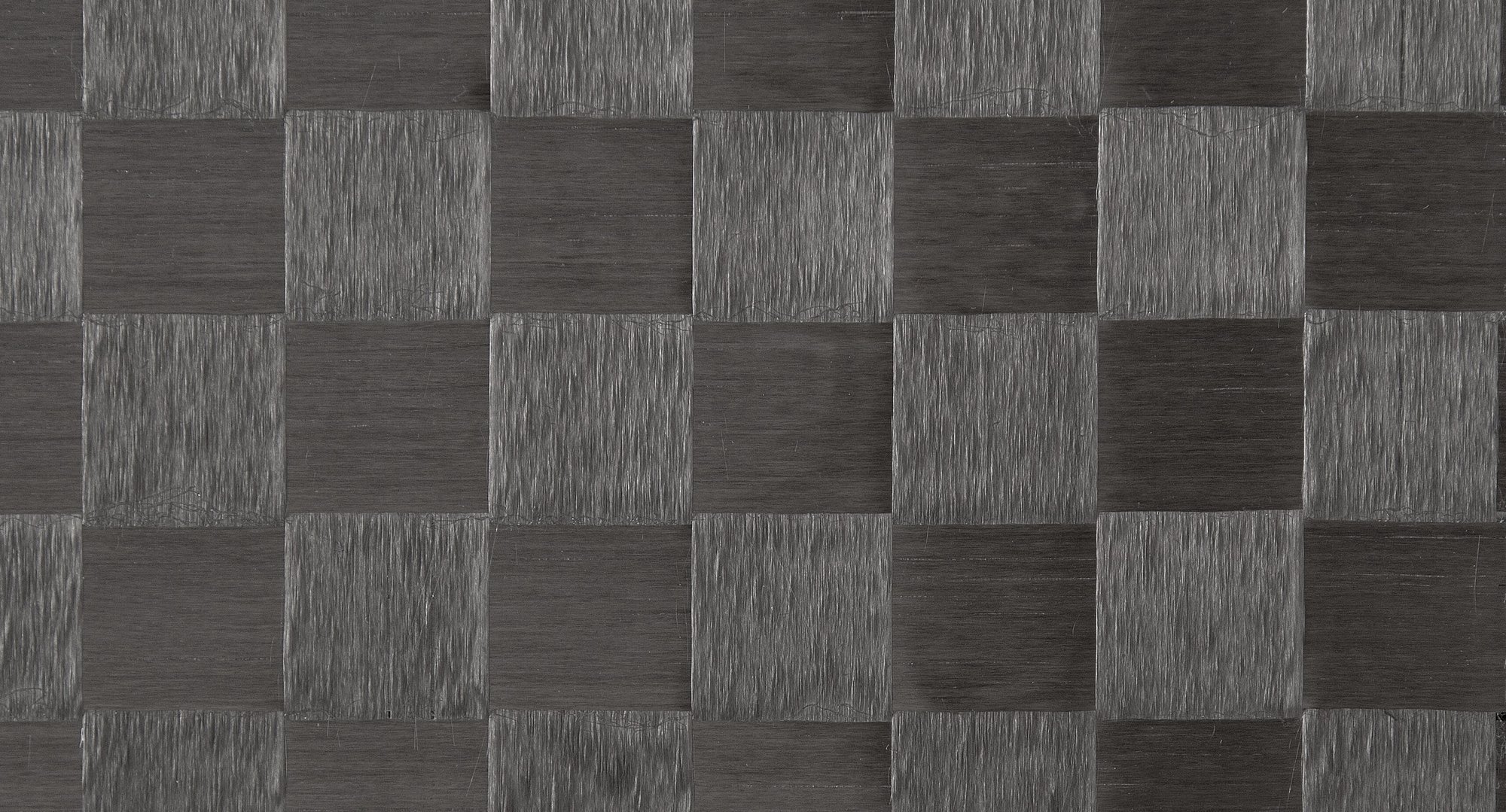

TeXtreme® 0 90 closeup-1
Article Description FAW (gsm) Binder (gsm) Areal Weight (gsm) Tape Width (mm)

1051
 TeXtreme® 0/90 HS 64
64
10
74
25
1013/1025
 TeXtreme® 0/90 HS 80
80
10
74
25
1000/1103
 TeXtreme® 0/90 HS 100
100
10
110
20
1025

 TeXtreme® 0/90 HS 200

200
10
210
20
1154
TeXtreme® 0/90 HS 100
100
10
110
20x40
1230
TeXtreme® 0/90 HS 160
160
10
170
10
1017
 TeXtreme® 0/90 HS 160

160
10
170
20
1171
TeXtreme® 0/90 IM 42
42
10
52
20
1009
 TeXtreme® 0/90 IM 76
76
10
86
20
1014
 TeXtreme® 0/90 IM 152
152
10
162
20
1003
 TeXtreme® 0/90 IM 82
82
10
92
20
1134
TeXtreme® 0/90 HM 43
43
10
53
20
1170
TeXtreme® 0/90 HM 86
86
13
99
20
1005
TeXtreme® 0/90 HM 130
130
10
140
20
1027
 TeXtreme® 0/90 HM 60
60
10
70
20
1095
 TeXtreme® 0/90 HM 120
120
10
130

20
Woven with fibers oriented at +/-45 degrees, this configuration provides excellent shear strength and torsional performance, ideal for applications requiring multidirectional reinforcement.
Weights from

50 gsm

Carbon Fiber Type

HM, IM & HS

Fabric Width

1000 & 1270 mm





Tape Width

20 mm

Binder

10 gsm

Weave Pattern

PW

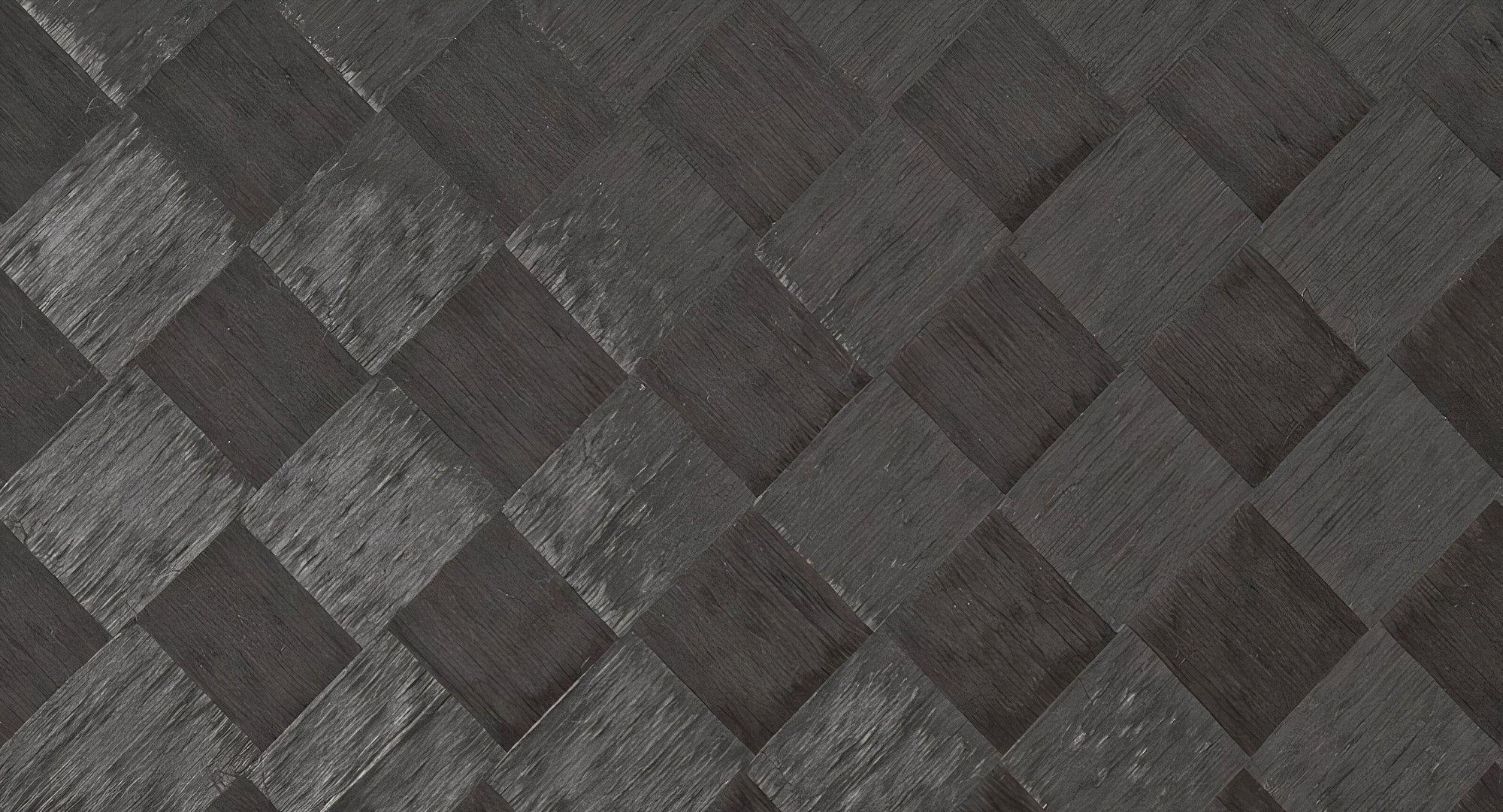

TeXtreme +- 45 Carbon_LE_upscale_balanced_x4

Key Benefits

  • Crimp-free construction improves fiber efficiency and structural integrity
  • Defined fiber orientations enable optimized layups for directional performance
  • Lightweight format supports material savings and reduces overall component mass
  • Flat woven surface enhances resin flow, bonding, and visual finish
  • Stable fabric structure simplifies handling and improves production repeatability
Article Description FAW (gsm) Areal Weight (gsm)
3004
TeXtreme® +/-45 HS 80

80
90
3001
TeXtreme® +/-45 HS 100
100
110
3007
 TeXtreme® +/-45 HS 160
160
170
3011
 TeXtreme® +/-45 IM 76
76

86
3024
 TeXtreme® +/-45 HM 50
50
60
3025
 TeXtreme® +/-45 HM 86
86
96
