TeXtreme® Woven Spread Tow UD Tape

TeXtreme® Spread Tow UD Tapes are designed to meet the demands of high-performance composites where every gram and every fiber counts. Their ultra-thin construction and precise fiber alignment provide outstanding strength-to-weight efficiency, enabling lighter, more durable parts without compromise.

These unidirectional (UD) tapes contain fibers aligned in a single direction, maximizing stiffness and load-bearing performance along defined axes. Each tape is formed by spreading fiber tows into flat, uniform strips that eliminate waviness, improve mechanical efficiency, and support precise reinforcement placement.

Local stiffness is significantly improved with these tapes, enabling optimized performance exactly where it is needed. The thin-ply format allows engineers to reduce structural weight while maintaining exceptional strength and durability. Available in both dry and prepreg formats, TeXtreme® UD Tapes support a wide range of composite manufacturing processes.

Key Benefits

  •  Unidirectional fiber layout provides maximum stiffness and strength along critical load paths
  • Ultra-thin, flat construction supports compact stacking and structural efficiency
  • Improved local reinforcement enhances performance without added mass
  • Thin-ply format enables lighter, stronger laminates with reduced material use
  • Available in dry and prepreg formats for versatile processing integration

Explore Configurations

View product specifications to find the ideal fit for your application.


Woven with fibers aligned in the 0° and 90° directions, this configuration delivers optimal stiffness and strength along both primary axes, making it ideal for load-bearing structural applications.
Weights from

200 gsm

Fiber Type

Flax

Fabric Width

Up to 2000mm







Weave Pattern

PW

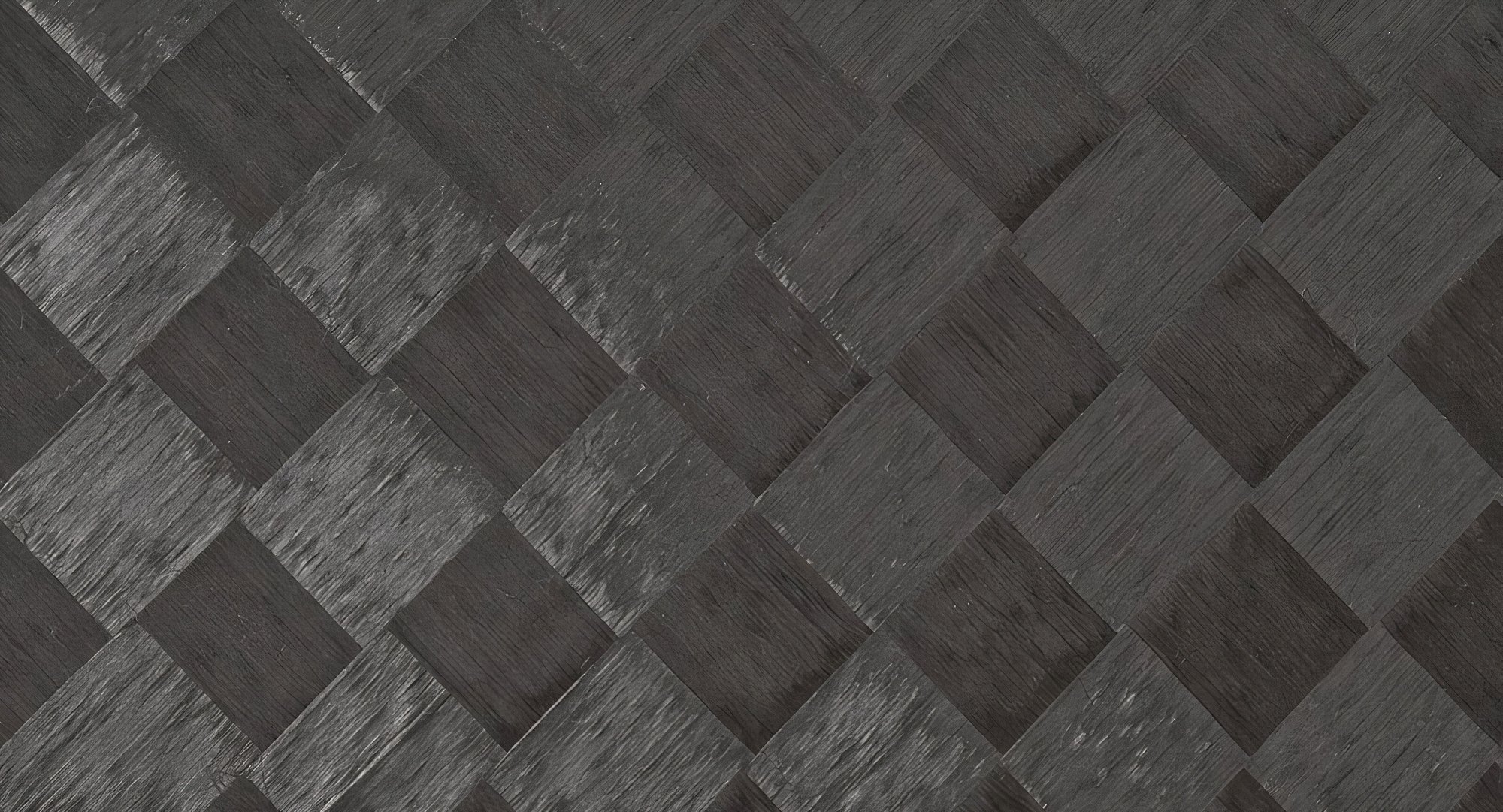

TeXtreme +- 45 Carbon_LE_upscale_balanced_x4

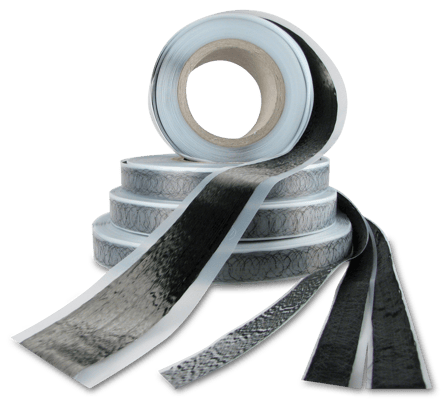

Supplied in 200 lm on a 3” core with thermoplastic interleave foil.
Weights from

21 gsm

Carbon Fiber Type

HS, IM & HM

Fabric Width

10-50 mm

Binder

5 gsm


2002xx-x-TeXtreme-Spread-Tow-Tapes-1
Article Description FAW (gsm) Areal Weight (gsm) Tape Width (mm)
5035
 TeXtreme® UD HS 32

32
37
25
5160
 TeXtreme® UD HS 40
40
45
20
5009
 TeXtreme® UD HS 50
50
55
20
5018
TeXtreme® UD HS 80
80
85
20
5021
 TeXtreme® UD HS 80
80
85
50
5017
 TeXtreme® UD HS 100
100
105
20
5003
TeXtreme® UD IM 38
38
43
20
5020
TeXtreme® UD IM 76
76
81
20

5071
 TeXtreme® UD IM 76
76
81
50
5072
 TeXtreme® UD HM 21
21
26
20
5026
TeXtreme® UD HM 30
30
35
20

Find Other Products
Article Description FAW (gsm) TP Binder (gsm) Areal Weight (gsm)
1238
TeXtreme® +/-45 Flax 200

200
12
212
