TeXtreme® Woven Spread Tow Bio-Based Flax Fabrics

TeXtreme® Bio-based Flax offers a renewable reinforcement solution for composite applications where sustainability, lightweight performance, and structural reliability are key. Made from natural flax fibers arranged using TeXtreme® Spread Tow Thin-Ply Technology, these fabrics combine environmental responsibility with the mechanical efficiency required for modern high-performance components.

Available in both 0/90 and +/- 45 fiber orientations, TeXtreme® Bio-based Flax provides directional stiffness and impact resistance in a lightweight format. The Spread Tow architecture eliminates the twisted yarns typically found in natural fiber reinforcements, maintaining straighter fibers for improved fiber alignment, material uniformity, and processing efficiency. TeXtreme® Bio-based Flax can also be used to achieve improved surface smoothness and offers excellent dampening properties, further enhancing performance in vibration-sensitive or acoustic applications.

Supplied in dry form, TeXtreme® Bio-based Flax is suitable for a range of composite manufacturing methods. Its stable structure supports precise placement and contributes to reduced material waste, making it ideal for applications where both strength and sustainability are essential.

Key Benefits

  •  Natural flax fibers provide a renewable, bio-based alternative without compromising performance
  • Straight fiber architecture minimizes waviness and maximizes structural integrity
  • Directional fiber orientations enable tailored mechanical properties for specific load paths
  • Excellent impact resistance, surface quality, and dampening support multi-functional designs
  • Stable handling simplifies layup and enhances processing consistency

Explore Configurations

Compare orientations and view product specifications to find the ideal fit for your application.

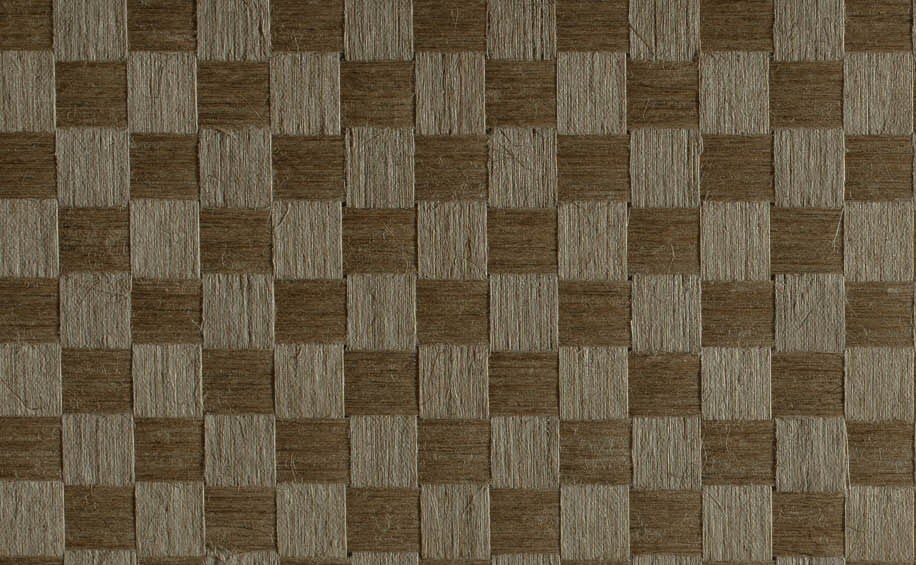

Woven with fibers aligned in the 0° and 90° directions, this configuration delivers optimal stiffness and strength along both primary axes, making it ideal for load-bearing structural applications.

Weights from

200 gsm

Fiber Type

Flax

Fabric Width

Up to 2000 mm









Weave Pattern

PW

biobased
Woven with fibers oriented at +/-45 degrees, this configuration provides excellent shear strength and torsional performance, ideal for applications requiring multidirectional reinforcement.
Weights from

200 gsm

Fiber Type

Flax

Fabric Width

1000 & 1270 mm









Weave Pattern

PW

biobased
Article Description FAW (gsm) TP Binder (gsm) Areal Weight (gsm)
3026
TeXtreme® +/-45 Flax 200

200

12
212
Article Description FAW (gsm) TP Binder (gsm) Areal Weight (gsm)
1238
TeXtreme® 0/90 Flax 200

200

12
212

Get in Touch

Choosing the right composite solution is critical to product performance, weight targets, and production efficiency. Our team of engineers and materials experts is ready to support your evaluation, design integration, and manufacturing process.
