TeXtreme® Grid Material
TeXtreme® Grid Fabrics are the solution when even the lightest materials are not light enough, combining strength, minimal weight, and design flexibility in a distinctive lattice construction. These bi-axial Spread Tow fabrics feature strategically designed openings that enable radio transparency while maintaining mechanical performance.
Available in both 0/90 and +/- 45 fiber orientations, TeXtreme® Grid is engineered to meet specific structural requirements, offering increased torsional stiffness with minimal added weight and allowing signal transmission through its open architecture. The grid structure also contributes to reduced material usage and improved laminate consistency across a range of applications.
Supplied in both dry and prepreg formats, TeXtreme® Grid is well suited for ultra-lightweight face sheets and sandwich skins. Its stable, easy-to-handle format ensures accurate placement during layup and supports efficient processing in weight-critical composite manufacturing.
Key Benefits
- Lattice structure delivers directional reinforcement with ultra-low weight
- Open architecture supports radio transparency without sacrificing strength
- Tailorable design enables stiffness optimization and resin flow control
- Compatible with ultra-lightweight face sheets and sandwich constructions
- Stable handling simplifies layup and improves production efficiency
Explore Configurations
Compare orientations and view product specifications to find the ideal fit for your application.

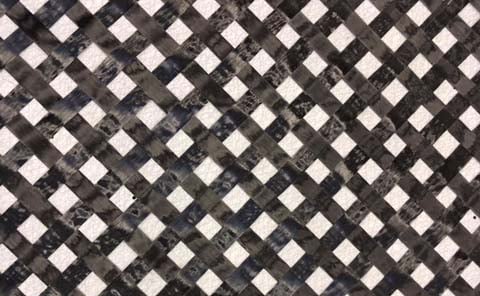

- TeXtreme® +/- 45
- TeXtreme® 0/90

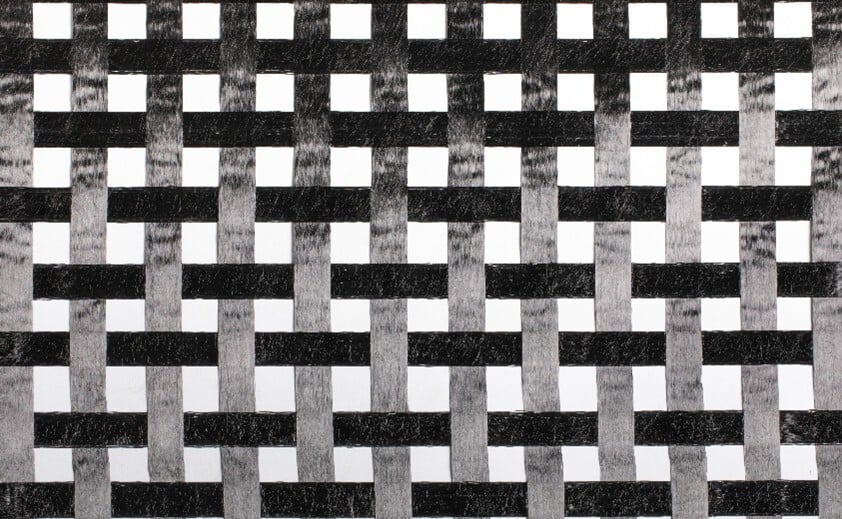

Woven with fibers aligned in the 0° and 90° directions, this configuration delivers optimal stiffness and strength along both primary axes, making it ideal for load-bearing structural applications.
Weights from
20 gsm
Carbon Fiber Type
HM, IM & HS
Fabric Width
Up to 2000 mm
Tape Width
10 mm
Binder
5 gsm
Weave Pattern
PWG
Weights from
20 gsm
Carbon Fiber Type
HM, IM & HS
Fabric Width
1000 & 1270 mm
Tape Width
10 mm
Binder
5 gsm
Weave Pattern
PWG
| Article | Description | FAW (gsm) | Binder (gsm) | Areal Weight (gsm) | Tape Width |
|---|---|---|---|---|---|
3010 |
TeXtreme® +/-45 Grid 80 HS |
80 |
5 |
85 |
10 |
| Article | Description | FAW (gsm) | Binder (gsm) | Areal Weight (gsm) | Tape Width |
|---|---|---|---|---|---|
1138 |
TeXtreme® 0/90 Grid 30 HM |
30 |
5 |
35 |
20 |
1292 |
TeXtreme® 0/90 Grid 200 HS |
200 |
7 |
207 |
13 |
