TeXtreme® Woven Spread Tow Hybrid Fabrics

TeXtreme® Woven Spread Tow Hybrid Fabrics combine the stiffness of carbon fibers with the toughness of more ductile fibers, creating a reinforcement material that offers both strength and durability in a lightweight format. Designed for applications requiring impact tolerance and vibration dampening, these hybrid fabrics maintain structural performance while minimizing weight.

Built using TeXtreme® Spread Tow Thin-Ply Technology, the fabrics feature a flat, crimp-free architecture that enhances fiber alignment and load distribution. Available exclusively in a 0/90 fiber orientation, TeXtreme® Woven Spread Tow Hybrid Fabrics are offered in a range of fiber combinations, enabling tailored reinforcement strategies and precise mechanical tuning.

The hybrid construction reduces the risk of laminate failure in demanding environments while improving energy absorption and long-term durability. Their stable handling characteristics and compatibility with both dry and prepreg processing support efficient production of resilient, weight-sensitive composite structures.

Key Benefits

  • Carbon fibers deliver stiffness, while ductile fibers enhance toughness and vibration absorption
  • Improved impact tolerance reduces risk of structural failure
  • Tailored hybridization enables specific mechanical performance targets
  • Spread Tow Thin-Ply Technology improves fiber alignment and structural efficiency
  • Consistent handling and process compatibility support manufacturing precision

Explore Configurations

View product specifications to find the ideal fit for your application.


Woven with fibers aligned in the 0° and 90° directions, this configuration delivers optimal stiffness and strength along both primary axes, making it ideal for load-bearing structural applications.

Weights from

200 gsm

Fiber Type

Flax

Fabric Width

Up to 2000mm







Weave Pattern

PW

TeXtreme +- 45 Carbon_LE_upscale_balanced_x4
Woven with fibers aligned in the 0° and 90° directions, this configuration delivers optimal stiffness and strength along both primary axes, making it ideal for load-bearing structural applications.
Weights from

100 gsm

Hybridisation Fiber

PP, PBO, Aramides & UHMWPE

Fabric Width

Up to 2000 mm








Tape Width

20 mm

Weave Pattern

PW

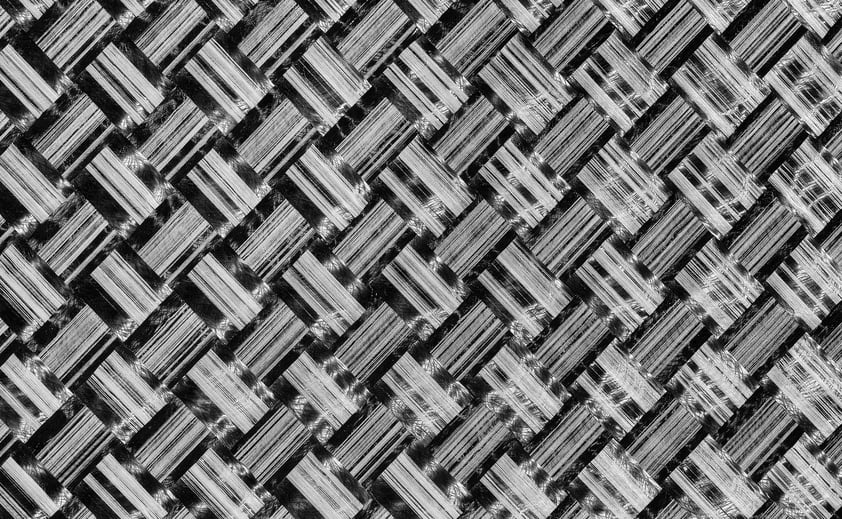

TeXtreme-Innegra-Hybrid-Above
Article Description FAW (gsm) TP Binder (gsm) Areal Weight (gsm)
1279
TeXtreme® HYBRID 0/90
HS/INNEGRA 130

130

15
140
1200
TeXtreme® HYBRID 0/90
HS/INNEGRA 180
180
10
190
1117
TeXtreme® HYBRID 0/90
HS/ZYLON 133
133
10
143
Article Description FAW (gsm) TP Binder (gsm) Areal Weight (gsm)
1238
TeXtreme® +/-45 Flax 200

200

12
212

Get in Touch

Choosing the right composite solution is critical to product performance, weight targets, and production efficiency. Our team of engineers and materials experts is ready to support your evaluation, design integration, and manufacturing process.
